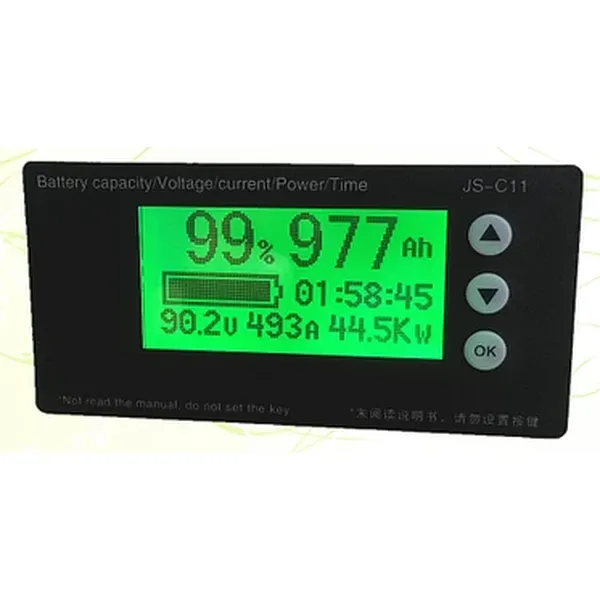

LiFePo4 Coulomb meter LiFePo4 Fuel Gauge

Electrical parameters:
Operating voltage: 8-65V or 10-100V optional, more than 100V custom-made service
Operating current: 0-500A optional
Test capacity: 0-999AH
Operating power consumption: 15MA (backlight light)
Standby power consumption: 5MA
Sleep power consumption: 0.2MA

Product accuracy: 0.5% (ultra-high precision)


Volage Range Max Current
8-65V   30A
8-65V
 150A
8-65V
 300A
8-65V
 500A
10-100V 30A
10-100V
 150A
10-100V
 300A
10-100V
 500A

8615986775944 86755-86299563

Description

Features:
1, Can accurately display the battery capacity value, voltage, current, power value and so on
2, can accurately display the charge current, according to the  the capacity and charge current to calculate the charge time
3, Can accurately display the discharge current, according to the battery capacity and discharge current, can calculate the discharge time
4, Can accurately display the charging power, and discharge power
5, Automatic identification of charge and discharge, backlight automatically identify the state of charge and discharge, automatic sleep
6, Accurate analog battery icon, charging automatically Display
