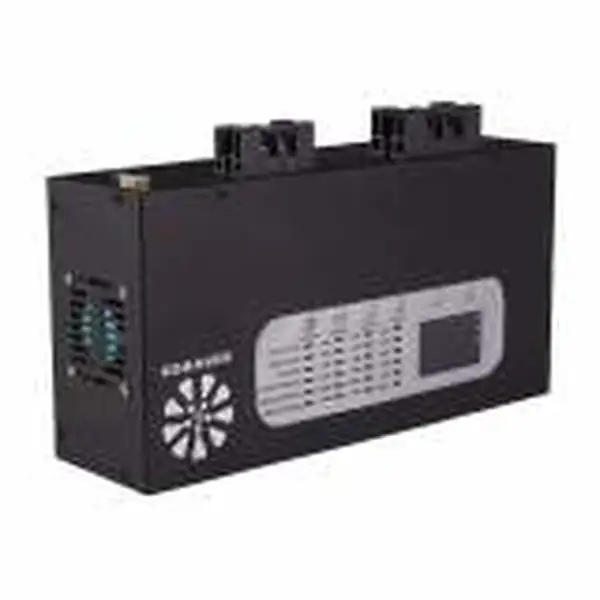

MPPT 25A Three Stages Solar Controller

PARAMETERS:


SC-MH MPPT Solar Charge Controller High-End Series
SC-MH High-End Series 20A 25A 30A
Charge Mode MPPT (maximum power point tracking)
Charge Method 3 stages: MPPT (constant current),
constant voltage, floating charge

Conversion
Efficiency

96V/120V/192V/
240V System

≥96.5%, ≤99%
Input Characteristics

MPPT Working
Voltage Range

96V System DC110V - DC220V
120V System DC140V - DC260V
192V System DC220V - DC360V
240V System DC300V - DC380V

Low Input Voltage
Protection Point

96V System 115V
120V System 145V
192V System 225V
240V System 295V

Low Input Voltage
Recovery Point

96V System 120V
120V System 150V
192V System 230V
240V System 300V

High Input Voltage
Protection Point

96V/120V/192V/
240V System

290V/290V/430V/430V

High Input Voltage
Recovery Point

96V/120V/192V/
240V System

280V/280V/420V/420V

Max.PV Input
Voltage

96V System 280V
120V System 280V
192V System 420V
240V System 420V
Max.PV Power 96V System 2240W 2750W 3300W
120V System 2760W 3450W 4140W
192V System 4400W 5500W 6600W
240V System 5520W 6900W 8200W
Charge Characteristics

Selectable
Battery Types

96V/120V/192V/
240V System

Sealed lead acid, Vented, Gel, NiCd battery
(Other types of the batteries optional)

Rated Output
Current

96V/120V/192V
240V System

20A 25A 30A
Size: W*D*H (mm) 155*308*86
Net Weight (kgs) 5
The specification is only for reference. Subject to change without prior notice.
8615986775944 86755-86299563

Description

FEATURES:

TSC-MH high-end series ranked the first among MPPT solar charge controllers. Advantages include high conversion efficiency, wide range of PV input, professional PC monitoring software etc.. This is the latest version of MPPT solar charge controller.
