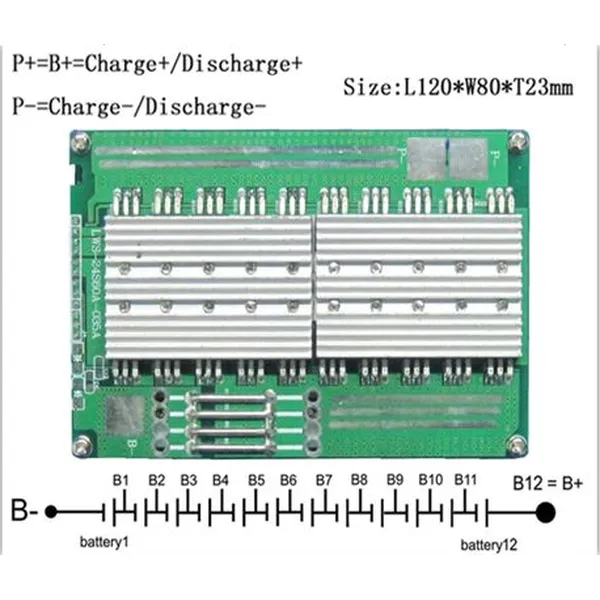

44.4V （12S）LI-ion Battery Management system
Item: WS-24S60A-035（12S）
1.Charge voltage DC：51V CC/CV
Single balanced voltage 4.20±0.025V
2.Single balance current 84±10mA
Current consumption (self-consumption) - Single Cell ≤20μA
Maximum continuous charge current :50A
Maximum continuous discharge current: 50A
3.Over charge（Single cell） Overcharge detection voltage 4.25±0.025V
Overcharge detection delay time 0.5S—1.5S
Overcharge recovery voltage 4.05±0.05V
4.Overdischarge detection voltage 2.50±0.062V
Over discharge detection delay time 10mS—150mS
Over-discharge recovery voltage 2.50±0.062V
5.Over current Overcurrent detection voltage :0.62V
Over current detection current 180±30A
Overcurrent detection delay time 5ms—15ms
Recovery status Disconnect the load, automatic recovery
6.Short circuit Detection Status short circuit
Detection delay time 200-500us
Recovery status Disconnect the load, automatic recovery
7 Inner resistance Protection（MOSFET） ≤20mΩ
8 Temperature Operation temperature -40～+85℃
Storage temperature -40～+125℃
