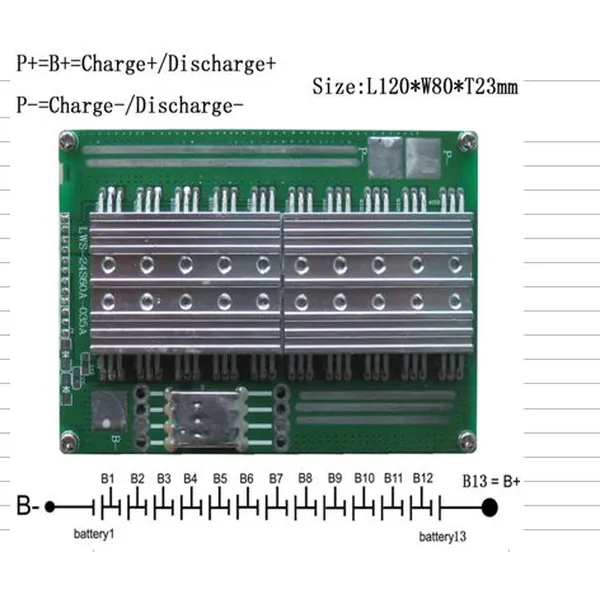

13S 54.6V 40A Li-ion BMS battery management system

Item: WS-24S60A-035（13S）
Item Specification
1 Voltage Charge Voltage DC：54.6V  CC/CV


2 Current

Self Discharge(Single Cell) ≤20μA
Max Constant Charge Current 40A
Max Constant Discharge Current 40A
3 Over Charge（Single Cell） Over Charge Voltage 4.25±0.025V
Overcharge Detection Delay Time 0.5S—1.5S
Overcharge Recovery Voltage 4.05±0.05V
4 Over Discharge（Single Cell） Overdischarge   Detection Voltage 2.50±0.062V
Over Discharge Detection Delay Time 10mS—150mS
Over-Discharge Recovery Voltage 2.50±0.062V
5 Over Current Over Discharge   Current Detection Voltage 0.62V
Over Discharge Current Detection Current 180±30A
Overcurrent Detection Delay Time 5ms—15ms
Recovery Status Disconnect The Load,   Automatic Recovery
6 Short Circuit Detection Status External Short Circuit
Detection Delay Time 200-500us
Recovery Status Disconnect The Load,   Automatic Recovery
7 Internal Resistance Protection（MOSFET） ≤20mΩ
8 Temperature Operating Temperature   Range -40～+85℃
Storage Temperature Range -40～+125℃
