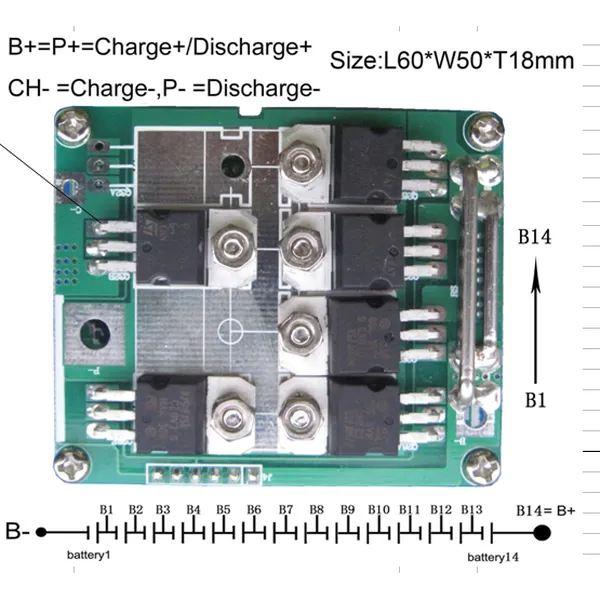

14S Li-ion LifePo4 BMS

51.8V（14S）Li-Ion   Battery BMS Specification
ITEM: WS-16S25A-010(14S)
Item	Specification
1	Voltage	Charge Voltage	DC：59.5V  CC/CV
		Singel Cell Balance Voltage	4.20±0.025V
2	Current	Single Cell Balance   Current	42±5mA
		Single Cell Self Discharge	≤20μA
		Max Constant Charge Current	10A
		Max Constant Discharge Current	20A
3	Overcharge Protection（Single Cell）	Over Charger Voltage   Detection	4.25±0.025V
		Overcharge Detection Delay Time	0.5S—1.5S
		Overcharge Recovery Voltage	4.05±0.05V
4	Overdischarge Protection（Single Cell）	Overdischarge   Detection Voltage	2.50±0.062V
		Over Discharge Detection Delay Time	10mS—150mS
		Over-Discharge Recovery Voltage	3.00±0.062V
5	Over Current Protection	Overcurrent Detection   Voltage	0.62V
		Over Current Detection Current	80±20A
		Overcurrent Detection Delay Time	5ms—15ms
		Recovery Status	Disconnect The Load, Automatic Recovery
6	Short Circuit Protection	Detection Status	Short Circuit
		Detection Delay Time	200-500us
		Recovery Status	Disconnect The Load, Automatic Recovery
7	Inner Resistance	Protection Circuit（MOSFET）	≤20mΩ
8	Temperature	Operating Temperature   Range	-40～+65℃
		Storage Temperature Range	-40～+125℃
