3-6S Lithium Battery Fuel gauge with Dual USB Port

Parameter

min

typical

max

unit

figure

Size







mm

44.2*45.2*22.5

Installation size







mm

42*38.5

Wire length

490



500

mm



Input volt

8



27

V



USB volt

4.8

5

5.05

V



USB current

0



2.5

A

Double sockets working

Power for sleep



15

20

uA



Voltage accuracy



±0.1

±0.1

V



Working temperature

-15

25

60

Description

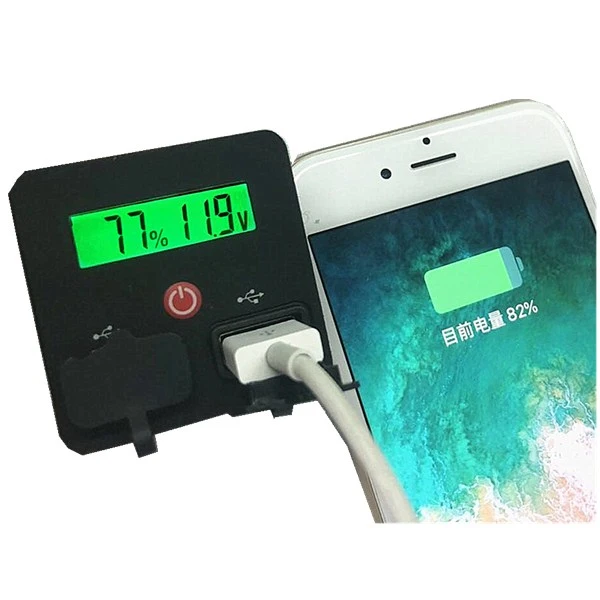

This LCD battery monitor is a battery specific residual battery monitor. With low power consumption, can be a long time to show the battery power; The two USB sockets can output 5V voltage and 2.0A current MAX, and it can be choosed to turn on and off. simple wiring, using standard connector, convenient maintenance and disassembly. Full enclosure, with a certain waterproof ability.



IMPORT FEATURES:

Ø Can be used for 3-6S Lithium battery or12V lead-acid battery

Ø Neutral packing

Ø Bayonet installation without screws, with a certain waterproof ability

Ø Clear display Shell protection

Ø This product can be ultra-low power consumption with switch

Ø Reservation function expansion
