Specification Of SPL3K Series (3000W) Battery Charger
No.	Model	CV			CC	Transition/Cut-Off Current		N.W.	Size
No.	Model	Lead Acid	Li-MnO2	LiFePO4	A	Lead Acid(A)	Li(A)	(Kg)	(Mm)
1	SPL48	58.8V	54.6V	58.4V	45	9.0	2.3	8.5	330220116
2	SPL60	73.5V	67.2V	73.0V	35	7.0	1.8
3	SPL144	176.4V	176.4V	175.2V	16	3.2	0.8
4	SPL288	352.8V	352.8V	350.4V	8	1.6	0.4
Features	1	Full Automatic Transition Of CC, CV And Float/Cut-Off, CAN Communication Available
	2	Precise Limit Of Voltage, Guarantee Fully Charged And Avoid Over Charge
	3	Protections: Over Current, Over Voltage, Short Circuit And Reverse Polarity
	4	High Efficiency: 85%~90%
	5	Two LED Indicators, Aluminium , Robust, Elegant And Reliable
	6	CE & C-Tick Certified, Safety And High Quality

Note: Cut-Off Point For Li Battery Is 5% Of CC, And It Can Be Set With Range Between 3-10%.

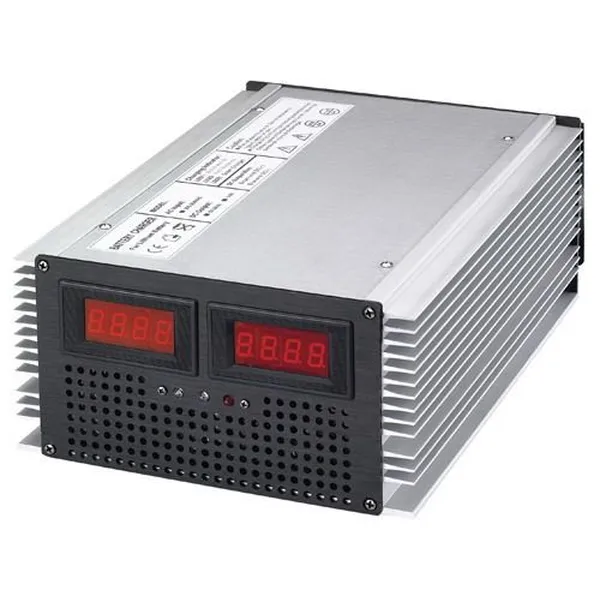

High power 3000W battery charger
