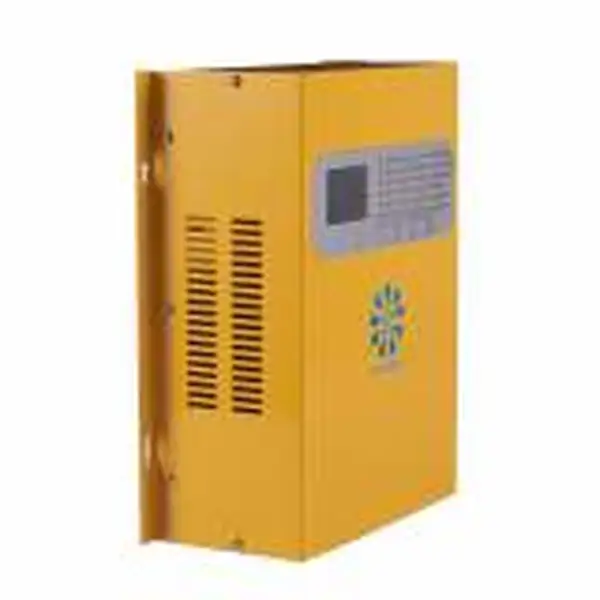

MPPT 60A Solar controller

PARAMETERS:


SC-MC STANDARD SERIES SOLAR CHARGE CONTROLLER
SC-MC Series
40A 50A 60A
Charge Mode
MPPT (maximum power point tracking)
Charge Method
3 stages: constant current, constant
 voltage, floating charge
MPPT Efficiency
12/24/48V
≥96.5%,≤99%
INPUT CHARACTERISTICS
MPPT working
 voltage range
12V System
DC18V~DC72V
24V System
DC34V~DC72V
48V System
DC65V~DC144V
Low input voltage
 protection point
12V System
DC16V
24V System
DC30V
48V System
DC60V

Low input voltage
 recovery point

12V System
DC22V
24V System
DC34V
48V System
DC65V

High input voltage
protection point

12/24/48V System
DC90V/DC90V/DC180V

High input voltage
recovery point

12/24/48V System
DC85V/DC85V/DC170V
Maximum PV Power
12V System (W)
570W
700W
900W
24V System (W)
1130W
1400W
1700W
48V System (W)
2270W
2800W
3400W
CHARGE CHARACTERISTICS
Battery Type
 (Default Gel Battery)
12V/24V/48V System

Sealed lead acid, Vented, Gel, NiCd battery
 (Other types of the batteries optional)

Rated Input Current
12V/24V/48V System
40A
50A
60A
MECHANICAL CHARACTERISTICS
Size D x W x H(mm)
276*241*100
N.W.(kgs)
3
3
3.5
G.W.(kgs)
3.5
3.5
4
The specification is only for reference, subject to change without without prior notice!

8615986775944 86755-86299563

Description

FEATURES:

SC-MC series ranks the top place among MPPT solar charge controllers, the advantages include wide range PV input, high conversion efficiency, professional PC monitoring software etc... This is the most advanced version of MPPT solar charge controller.



ADVANTAGES:
