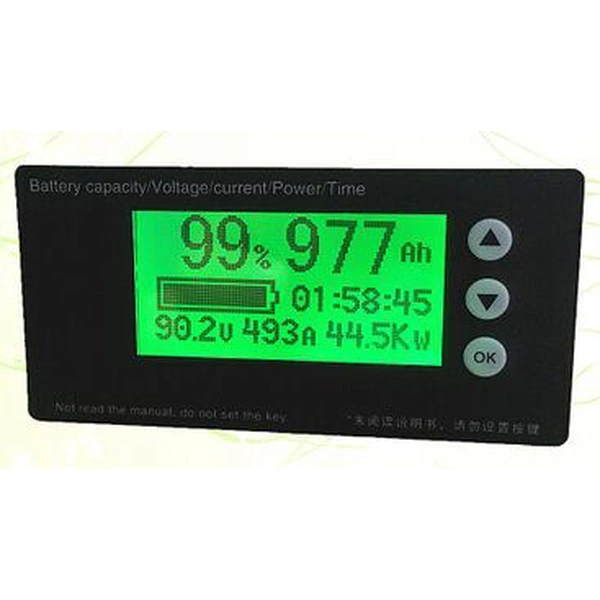

Coulomb meter battery fuel gauge( temperature version)

Electrical parameters:
Operating voltage: 10-100V
Operating current: 0-500A optional
Test capacity: 0-999AH
Operating power consumption: 15MA (backlight light)
Standby power consumption: 5MA
Sleep power consumption: 0.2MA
Product accuracy: 0.5% (ultra-high precision)


We have 10--100V 30A /150A/300A/500A  4 different one, please advise us which you need .

Battery Voltage Range Battery Max Discharge current
10-100V 30A
10-100V 150A
10-100V 300A/500A


8615986775944 86755-86299563

Description

Features:
1,  Accurately display the battery capacity value, voltage, current, power value.
2,Accurately display the charging power, and discharge power
3, Charge and discharge automatic identification, automatic identification of the state of charge and discharge backlight, automatic sleep
4, Accurate analog battery icon, charging automatic Happy Valley
5,Temperature real-time display (the default instrument near)
6, Charge and discharge state  display
7, power  memory
