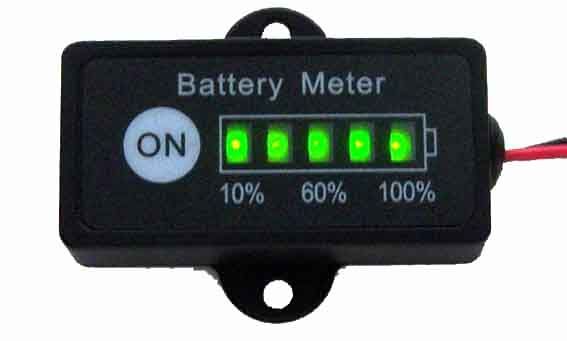

Battery Fuel Gauge for for 4~40 Cell NIMH/NICD Battery

HBG1's algorithms is the simple technology in all three ways. It is mornitoring the battery terminal voltage and comparing measured value with build-in fixed voltage-capacity table then give a result of relative remain capacity status. For different chemical battery type, the voltage-capacity curve is different. Further, even for a same battery pack, this curve will be different at higher or lower discharging current. So it is easy to understand why this method only get a gross or rough result. Generally, HBG1 has 10%~20% relative remain capacity tolerance.
8615986775944 86755-86299563

Description

Fuel Gauge Models

Suit for Ni-Mh/Ni-Cd Battery
HBG1-N4
4.8 Volt  (4Cells)
HBG1-N5
6 Volt  (5Cells)
HBG1-N6
7.2 Volt  (6Cells)
HBG1-N10
12 Volt  (10Cells)
HBG1-N20
24 Volt  (20Cells)
HBG1-N30
36 Volt  (30Cells)
HBG1-N40
48 Volt  (40Cells)
